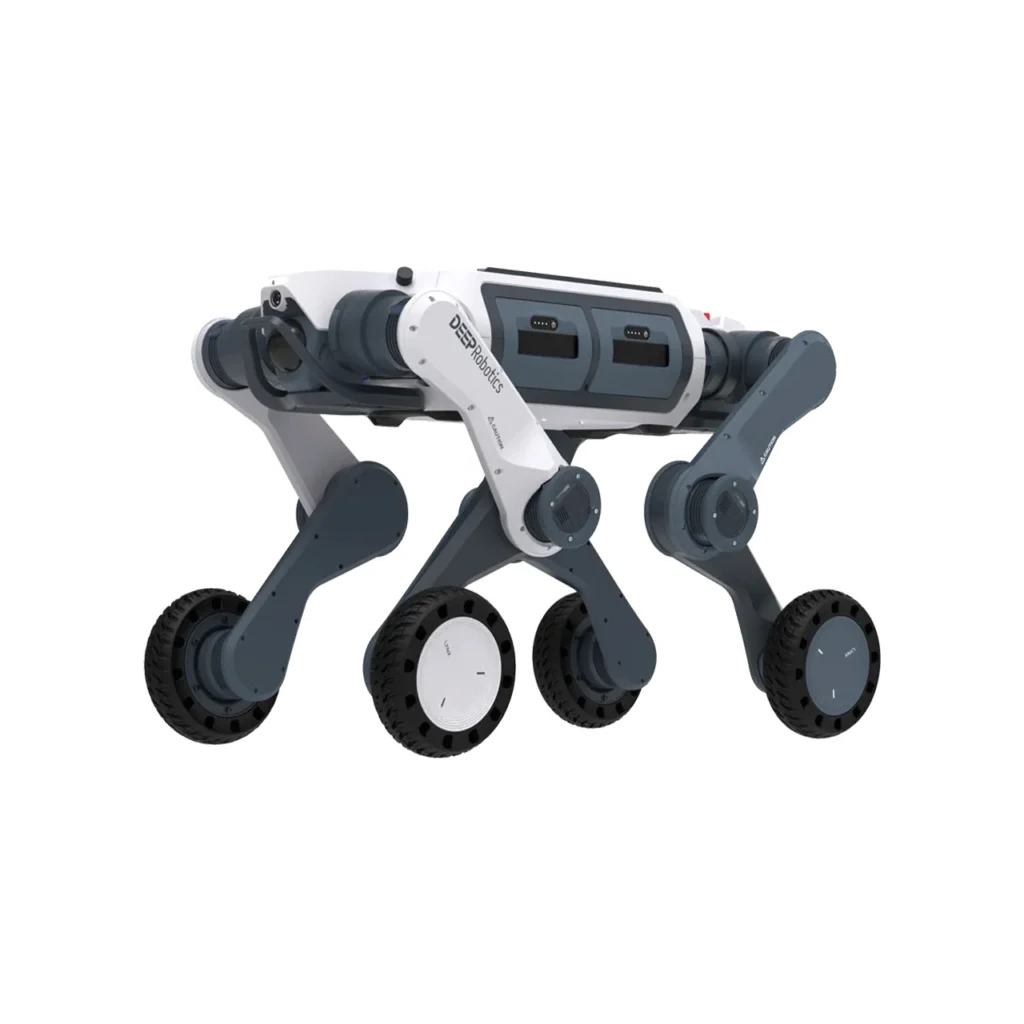

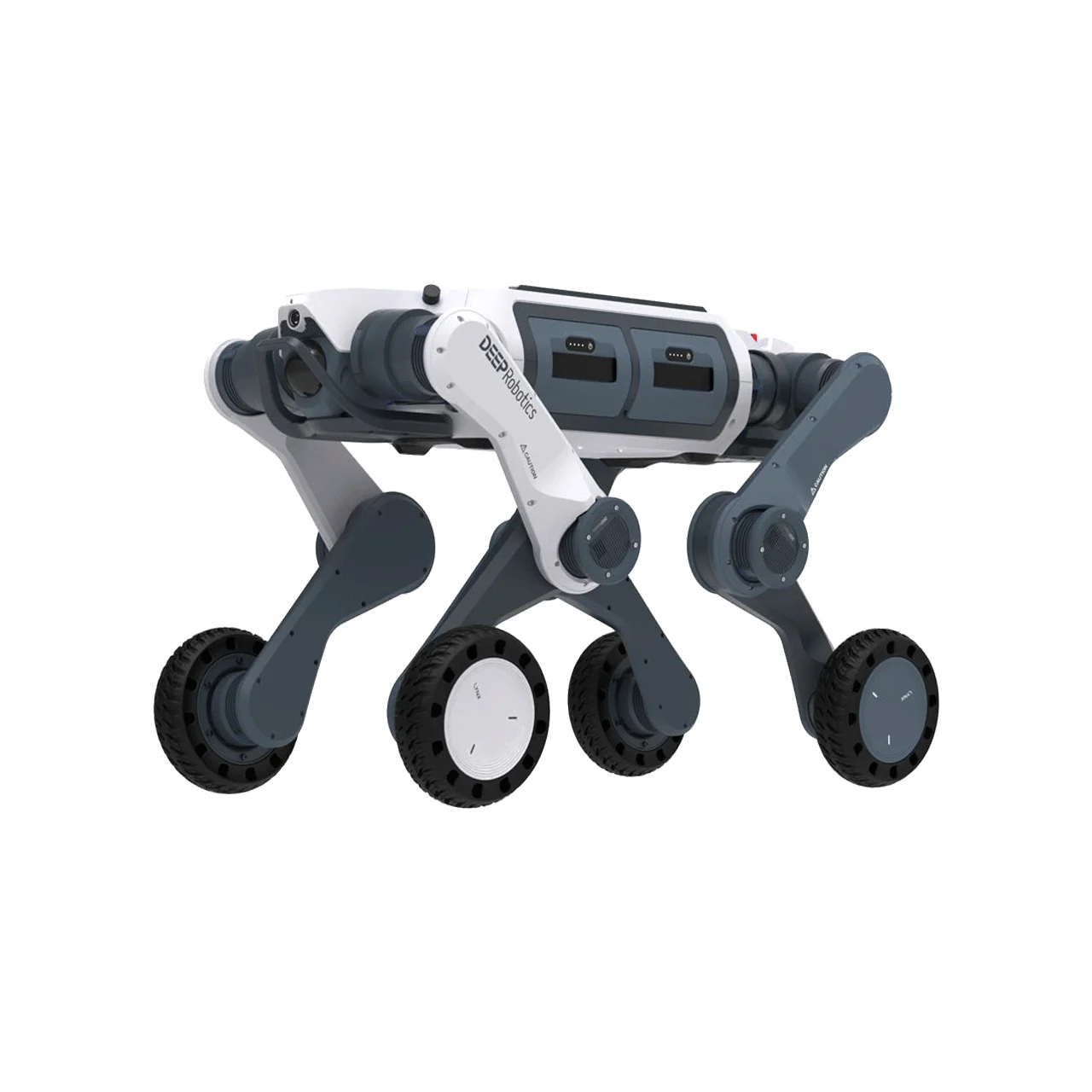

Deep Robotics LYNX M20 is the world’s first industrial-grade wheeled-legged robot built specifically for challenging terrains and hazardous environments. Fusing wheeled speed with legged agility in a compact 33 kg platform, the LYNX M20 conquers rugged mountain trails, muddy wetlands, and debris-strewn ruins — featuring 15 kg payload capacity, 80 cm single-step obstacle clearance, 45° slope capability, IP66 protection, -20°C to 55°C operation, dual 96-line LiDAR (360°×90° FOV), and up to 3 hours endurance covering 15 km. Pioneering embodied intelligence for power inspection, emergency response, logistics, and scientific exploration.
Lighter, Faster, Smarter – Industry-Grade Wheel-Legged Robot
- 33 kg Total Weight (Battery Included) – Portable by a single operator for rapid field deployment
- 50 cm Narrow-Space Clearance – Mid-size form factor designed for confined tunnels, pipelines, and industrial corridors
- Wheeled + Legged Hybrid Mobility – Combines wheeled speed for flat terrain with legged agility for stairs, gaps, and rough ground
- Hyper-Flexible Joints – Seamless leg-mode switching (e.g., front-elbow/rear-knee) adapts to any terrain condition
Omni-Terrain Mastery – Adapts to Extreme Environments
- 5 m/s Lab-Tested Max Speed – Safety-limited to 3 m/s in user mode; 2 m/s operating max speed
- 25 cm Max Continuous Stair Height – Stably climbs industrial staircases and stepped terrain
- 80 cm Max Single-Step Height – Clears large obstacles, debris, and terrain gaps
- 45° Max Slope – Navigates steep inclines across mountain trails and industrial infrastructure
- Autonomous Terrain Perception & Gait Adjustment – Intelligently adapts movement to surface conditions in real time
- Omnidirectional Obstacle Avoidance – Full surround perception for safe autonomous navigation
Hardcore Protection – Extreme Environment Ready
- IP66 Ingress Protection Rating – Dust-tight and high-pressure water jet resistant for harsh outdoor and industrial conditions
- -20°C to 55°C Operating Temperature – Reliable performance from freezing cold to extreme heat
- Front/Rear Bidirectional Lighting – Full illumination for complete darkness operations
- Hot-Swappable Batteries – Rapid field replacement for uninterrupted mission-critical operations
High-Performance Configurations
Payload & Endurance
- 15 kg Payload Capacity – Supports inspection sensors, survey equipment, and delivery loads
- 50 kg Max Load Capacity – For heavy-duty logistics and transport applications
- 3 Hours / 15 km Unloaded Endurance – Extended coverage for large-area patrol and inspection routes
- 2.5 Hours / 12 km Loaded Endurance (15 kg) – Mission-ready performance under full payload
- 1.5 Hours Single Battery Charging Time – Quick turnaround between deployments
Perception & Computing
- Dual 96-Line LiDAR (×2) – 360°×90° FOV, ~860,000 pts/s for comprehensive environmental mapping
- Wide-Angle Cameras (×2) – Visual perception for navigation and inspection documentation
- Dual Octa-Core 64-Bit Industrial Processors – (16 GB + 128 GB) × 2 for high-performance onboard computing
- Point Cloud Surround View – 360° environmental awareness via LiDAR point cloud visualization
- RF Image Transmission – Real-time video and data feed for remote operator monitoring
Connectivity & Expansion
- 72V Power Input – High-voltage power supply for payload and accessory integration
- Gigabit Ethernet – High-speed data communication for sensor payloads and control systems
- OTA Upgrades – Over-the-air firmware updates for continuous feature enhancement
- Optional Self-Charging & Modular Expansion – Scalable capabilities for diverse mission profiles
Application Scenarios
- Power Inspection – Autonomous patrol of substations, transmission corridors, and power infrastructure across rugged terrain
- Emergency Response – Rapid deployment into disaster zones, collapsed structures, and hazardous environments inaccessible to personnel
- Logistics & Transport – 50 kg max load capacity for material delivery across challenging terrain
- Scientific Exploration – All-terrain data collection in remote wilderness, wetlands, and extreme environments
- Tunnel & Pipeline Inspection – 50 cm narrow-space clearance with bidirectional lighting for confined infrastructure access
