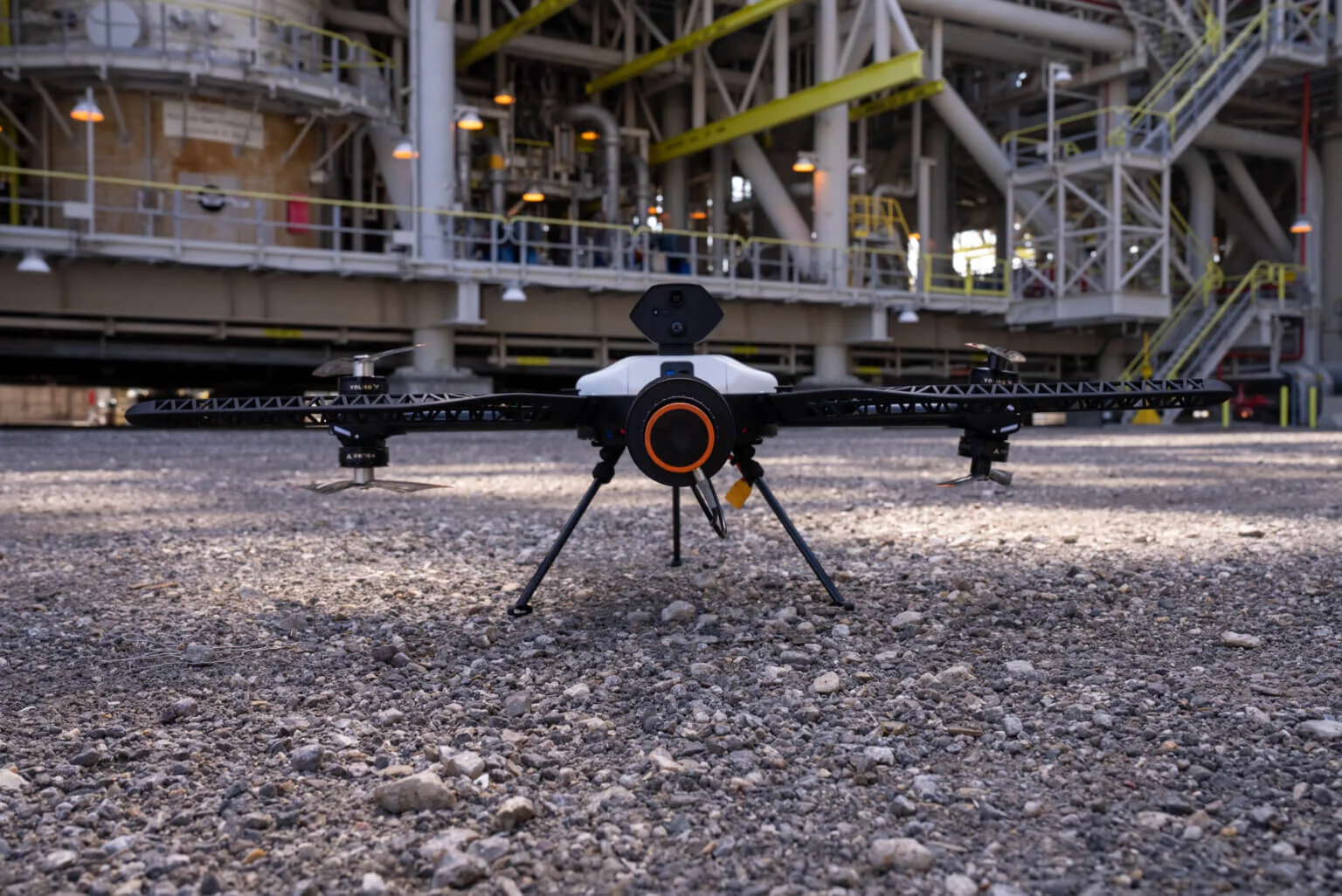

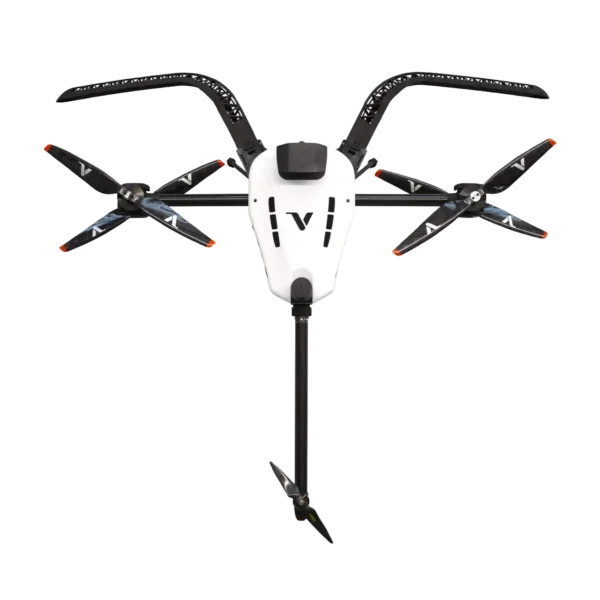

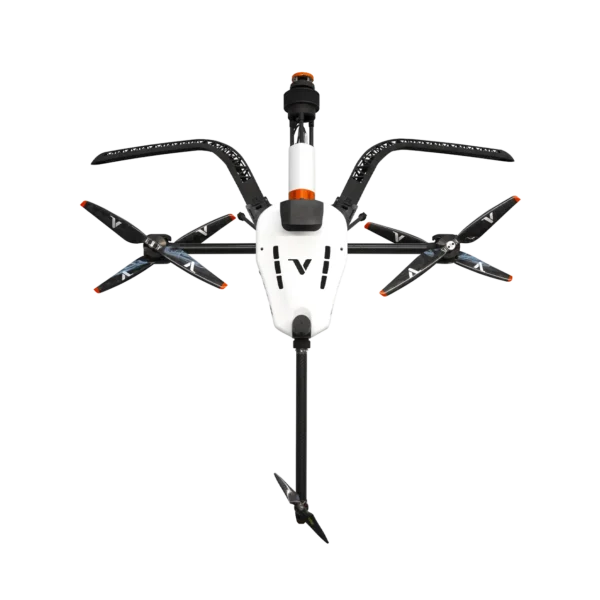

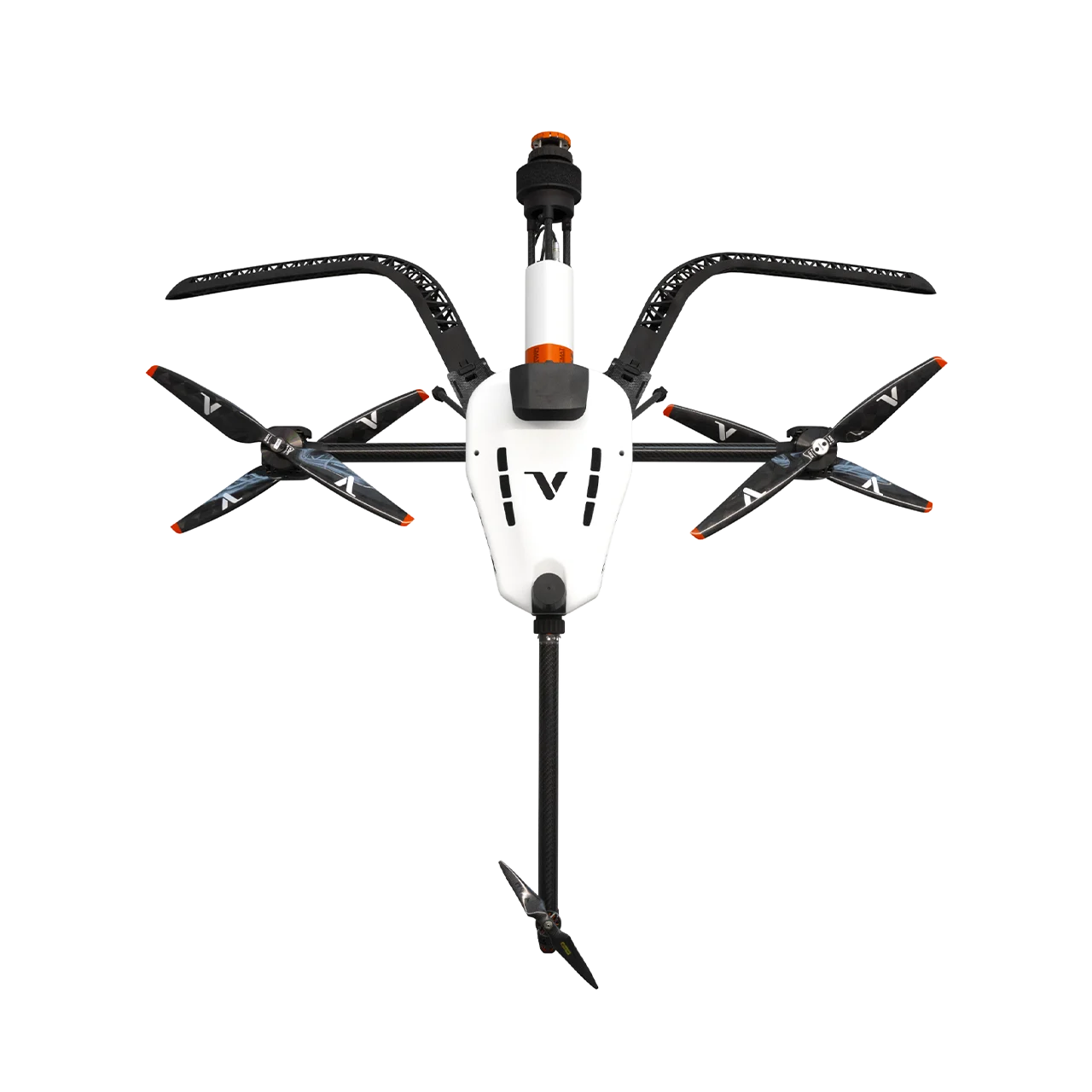

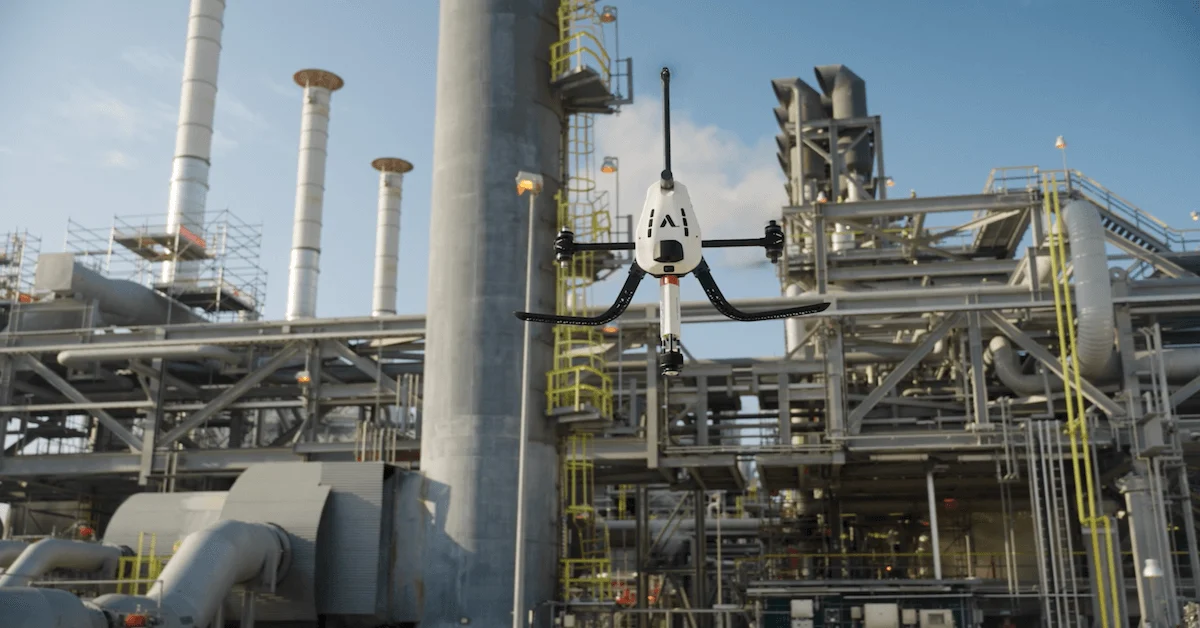

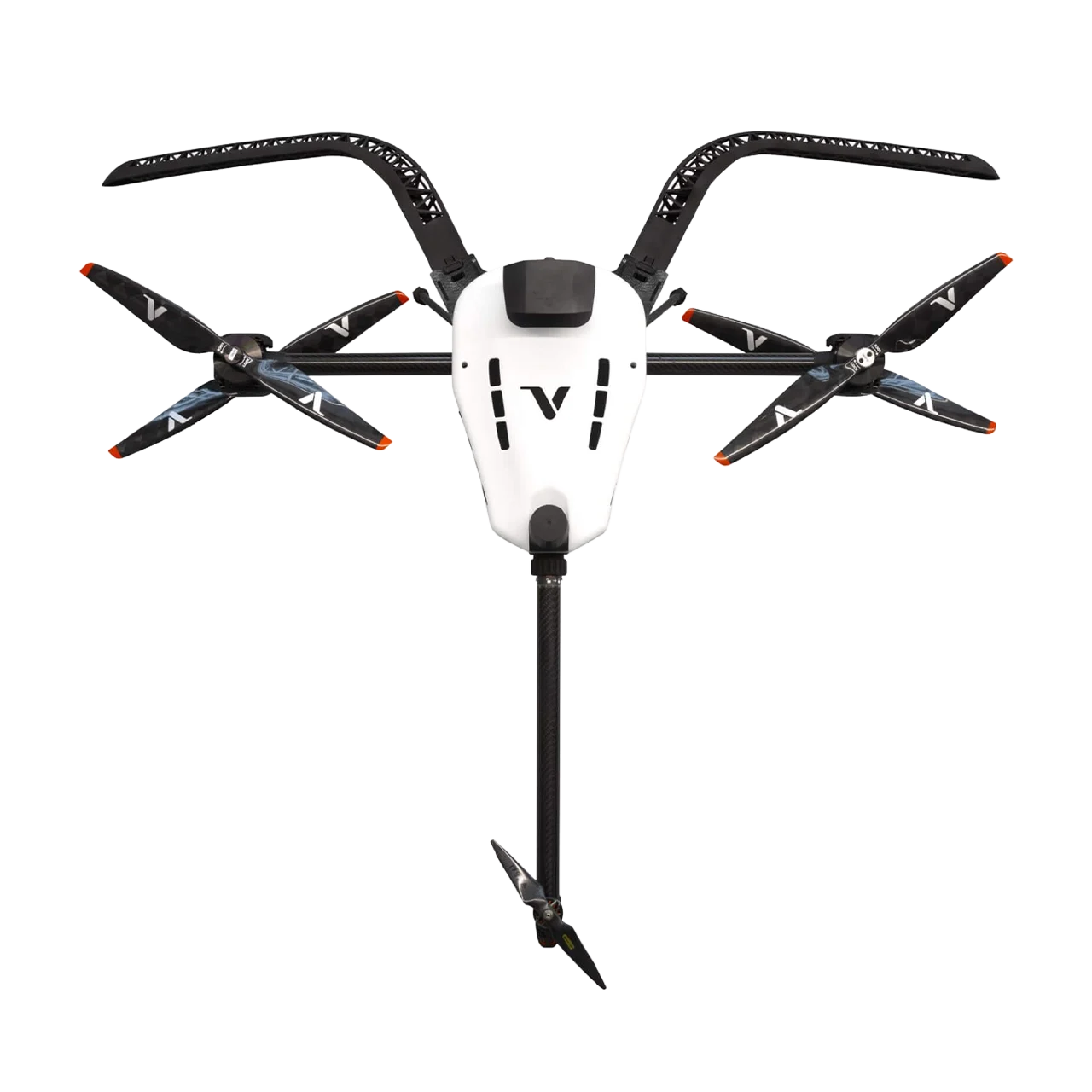

Voliro T is an omnidirectional tri-copter NDT (Non-Destructive Testing) inspection drone capable of ±90° pitch for contact inspections on surfaces of any orientation — vertical walls, ceilings, and complex structures. Weighing 3.7 kg (6.0 kg max takeoff), with 10–14 minute flight time, 12 m/s wind resistance, 4K 12MP inspector camera, 5G connectivity, triple-redundant IMU, RTK GPS, and 300+ m transmission range — the Voliro T Version 5 sets a new standard for aerial NDT inspection in offshore energy, wind turbines, bridges, and industrial facilities.
Omnidirectional Contact Inspection – Any Surface, Any Angle
- ±90° Pitch Capability – Orient to any surface for direct contact inspection of vertical walls, overhangs, and ceilings
- 2 cm / ±0.8 in Interaction Accuracy – Precise surface contact under normal conditions with trained pilot
- Six-Degree-of-Freedom Control – Full omnidirectional flight for complex structural navigation
- Modular Payload Bayonet – Tighter mechanical tolerances and stiffer materials for reliable NDT tool attachment
- Max Payload: 1.0 kg – Supports ultrasonic thickness gauges, cathodic protection probes, and other NDT instruments
Version 5 – Hardware & Software Upgrades
5G Real-Time Data Transfer
Built-in 5G module enables real-time health monitoring, proactive maintenance alerts, and over-the-air software upgrades via the Voliro Cloud — essential for offshore rigs, wind farms, and remote industrial sites.
New Flight Controller
- Triple-Redundant, Thermally Controlled IMU – Superior stability in GPS-denied environments, high altitudes, and strong winds
- Advanced Vibration Isolation Design – Precision flight control during contact interactions
- New Ethernet Interface – Faster data transmission for seamless operational workflows
- Advanced Motor Control – ESC data feedback for early motor abnormality detection
Robustified Design – 250g Lighter
- High-Impact Resistant Polyamide Leg Mounts – Smooth landings on hard surfaces
- Lightweight LED Bumpers – High-impact resistant with improved locking mechanism
- Corrosion-Resistant Torx Screws – Easier maintenance and longer lifespan
- Redesigned Camera Tower – Improved video stabilization during contact missions
- 50 cm Manhole Transportability – Fits through confined entry points without disassembly
4K Dual Camera System
- 4K 12MP Inspector Camera – 80° horizontal FoV, 30/60fps, GSD 0.16 mm/px, H.265 video
- 2K 12MP Pilot Camera – 140° horizontal FoV for situational awareness and navigation
- Live Dual Video Stream – HD 30fps for both inspector and pilot cameras simultaneously
- 17,000 Lumen Power LEDs – Adjustable illumination with intelligent thermal throttling
- 256 GB microSD Storage – Ample capacity for extended inspection campaigns
Flight Performance
- 10–14 Minute Flight Time – Mission and payload dependent

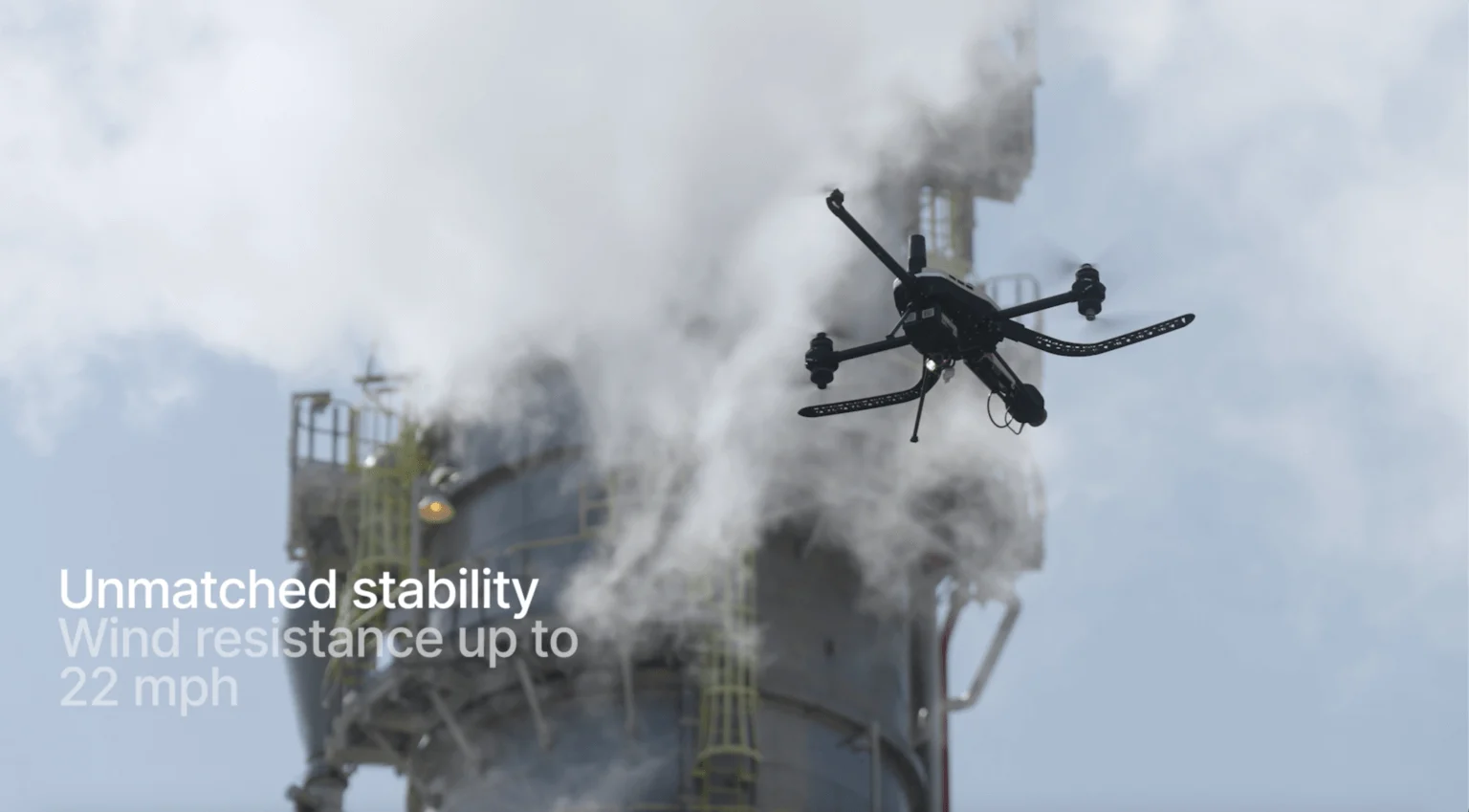

- 12 m/s Wind Resistance (Free Flight) – 8 m/s in interaction mode, recommended 6 m/s for precise contact
- Max Horizontal Speed: 3 m/s (Position mode) / 15 m/s (Manual mode)
- 300+ m Transmission Distance (VLOS) – 2+ km safety-critical RC link
- 5,000 m ASL Service Ceiling – High-altitude operation capability
- -10°C to 40°C Operating Temperature – Designed for offshore and industrial environments
Sensing & Navigation
- Depth Camera (VGA) – Proximity awareness during contact approach
- 6× LiDAR Distance Sensors + 6× Vision Velocity Sensors – Comprehensive 360° obstacle awareness
- RTK GPS (Multi-Band) – BeiDou, Galileo, GLONASS, GPS/QZSS for precise outdoor positioning
- GPS-Denied Indoor Navigation – Height, velocity, and attitude stabilization without satellites
- Remote ID Broadcasting – Bluetooth-based compliance
Battery & Transport
- 2× 6S LiPo Batteries in Parallel – 99 Wh, 2×4500 mAh, 1.3 kg per pair
- <90 Min Charging Time – Dual AC/DC charger with balancing function
- IATA Airline Approved Batteries – Table 2.3.A compliant for carry-on baggage
- <5 Minute Assembly Time – Rapid field deployment
- IATA-Compliant Transport Cases – Rugged, waterproof, crushproof Peli cases for drone (80×55×35 cm) and payload (60×35×20 cm)
Application Scenarios
- Wind Turbine Inspection – Contact NDT on blades, nacelles, and tower surfaces at any orientation
- Offshore Oil & Gas – Platform structure thickness measurement and corrosion assessment
- Bridge & Infrastructure – Underside and hard-to-reach structural inspection
- Industrial Facilities – Storage tank, chimney, and pressure vessel NDT inspection
- High-Rise & Facade – Building exterior and curtain wall condition assessment
