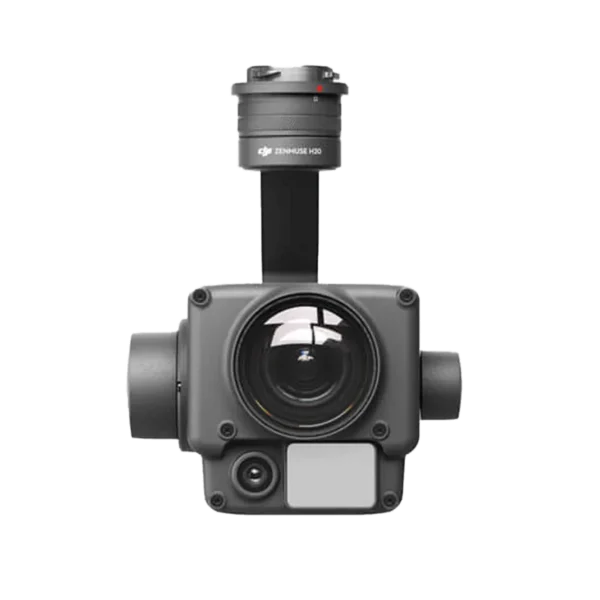

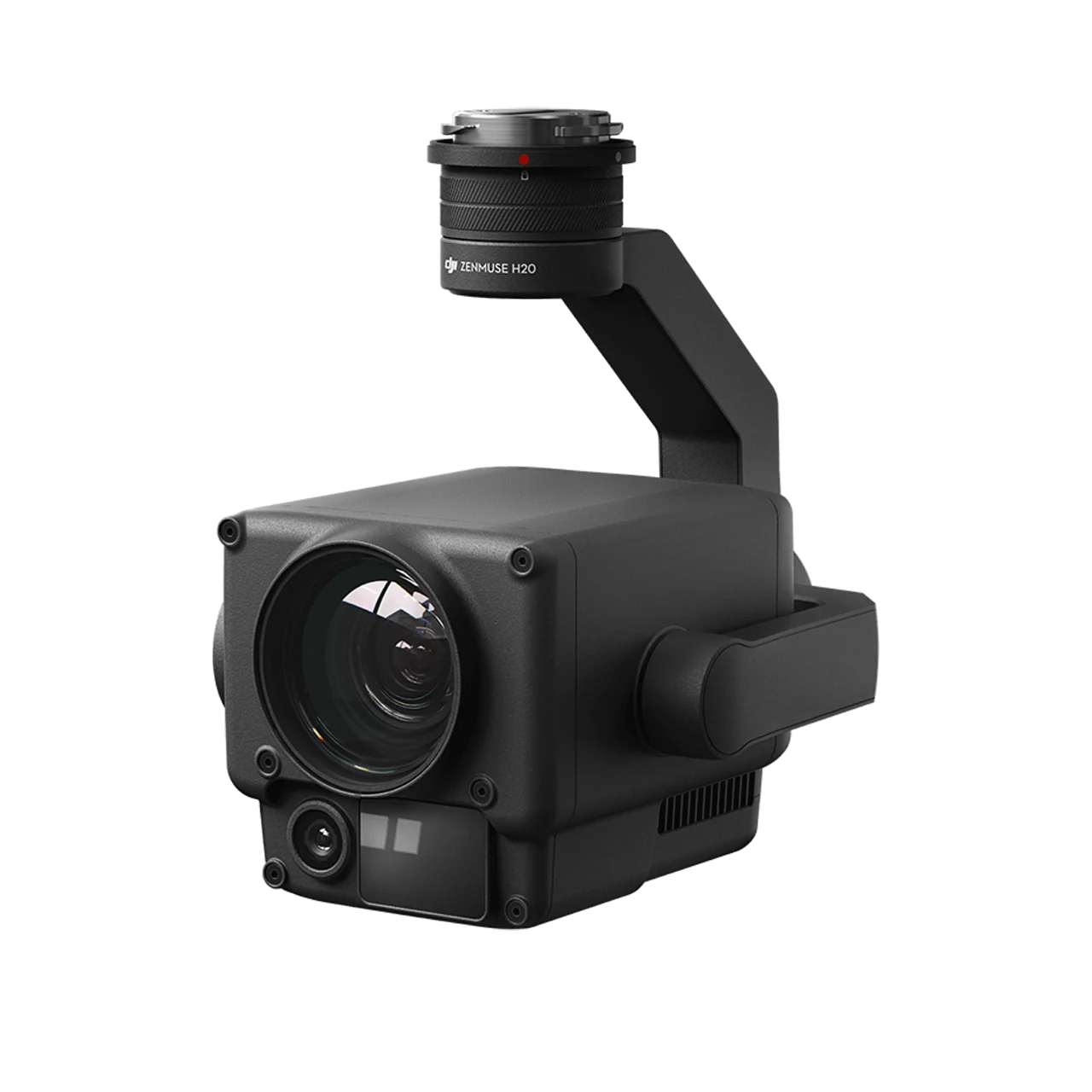

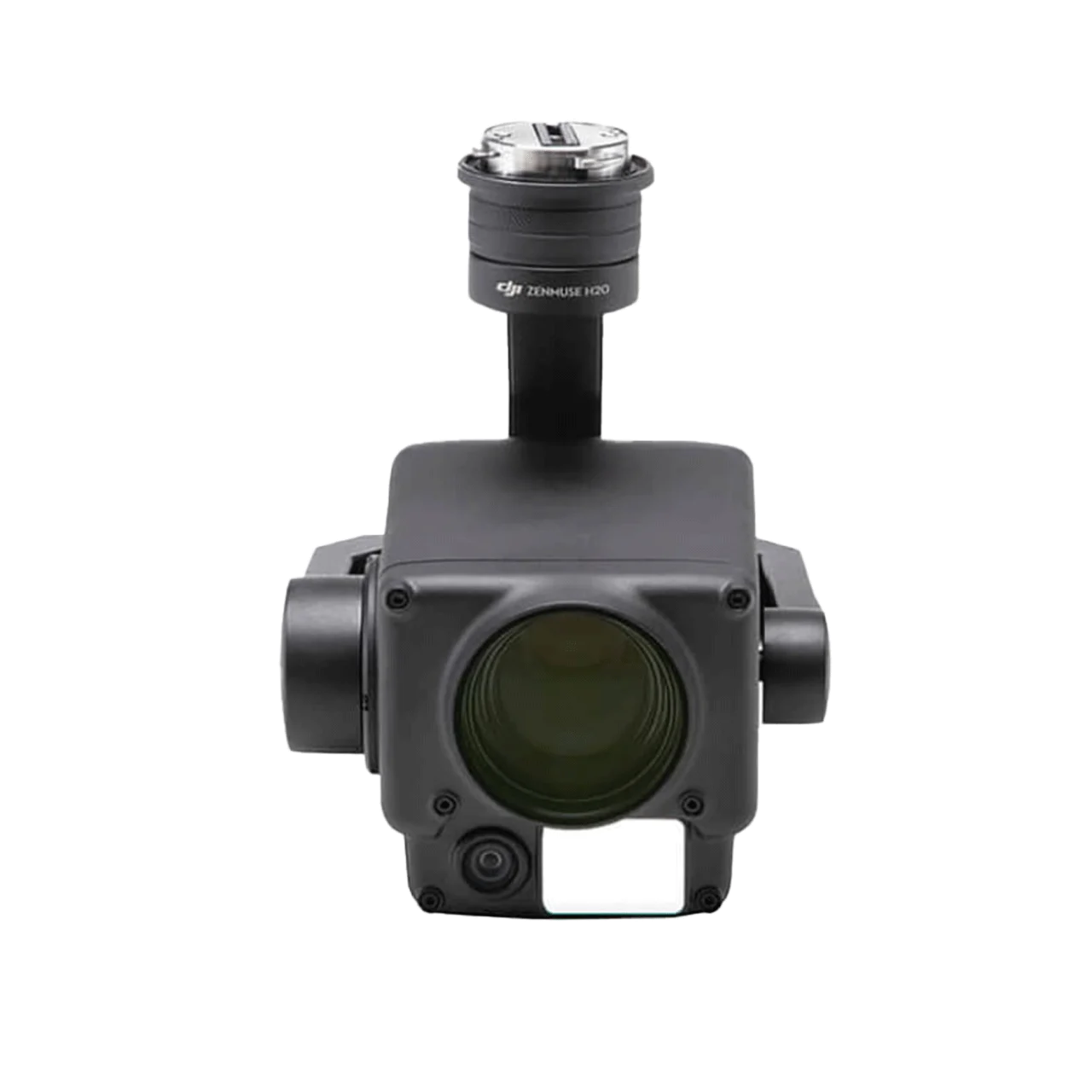

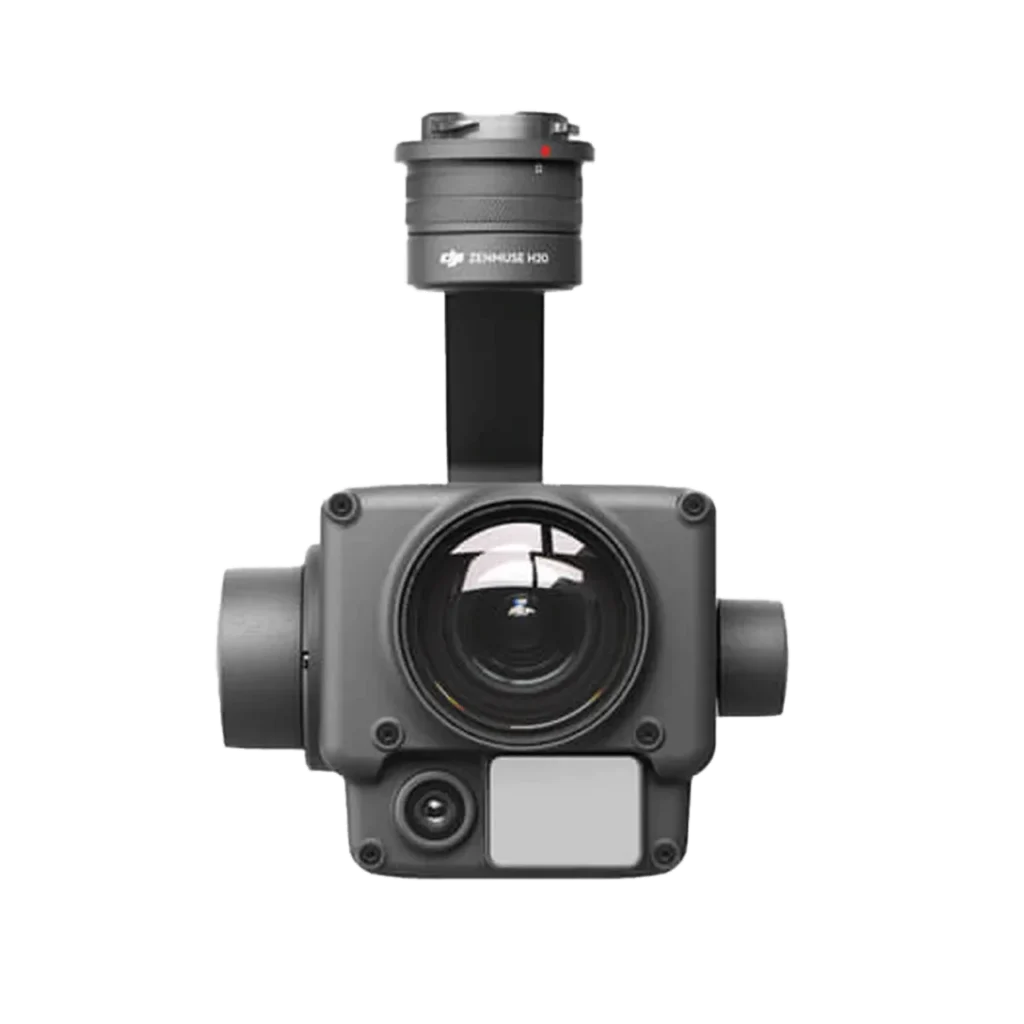

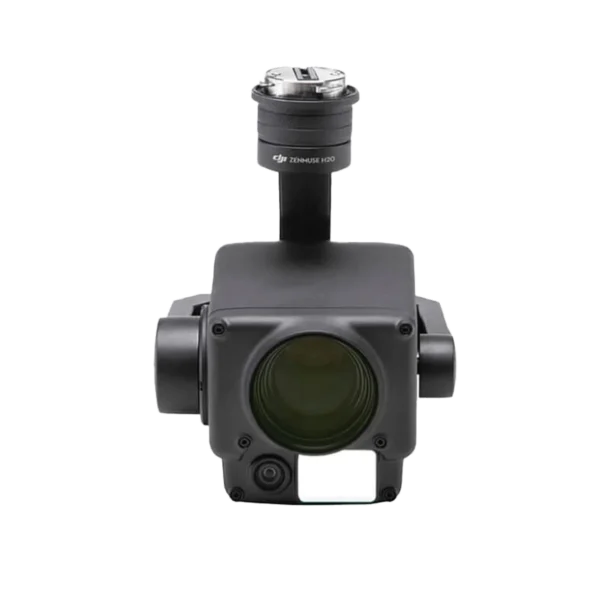

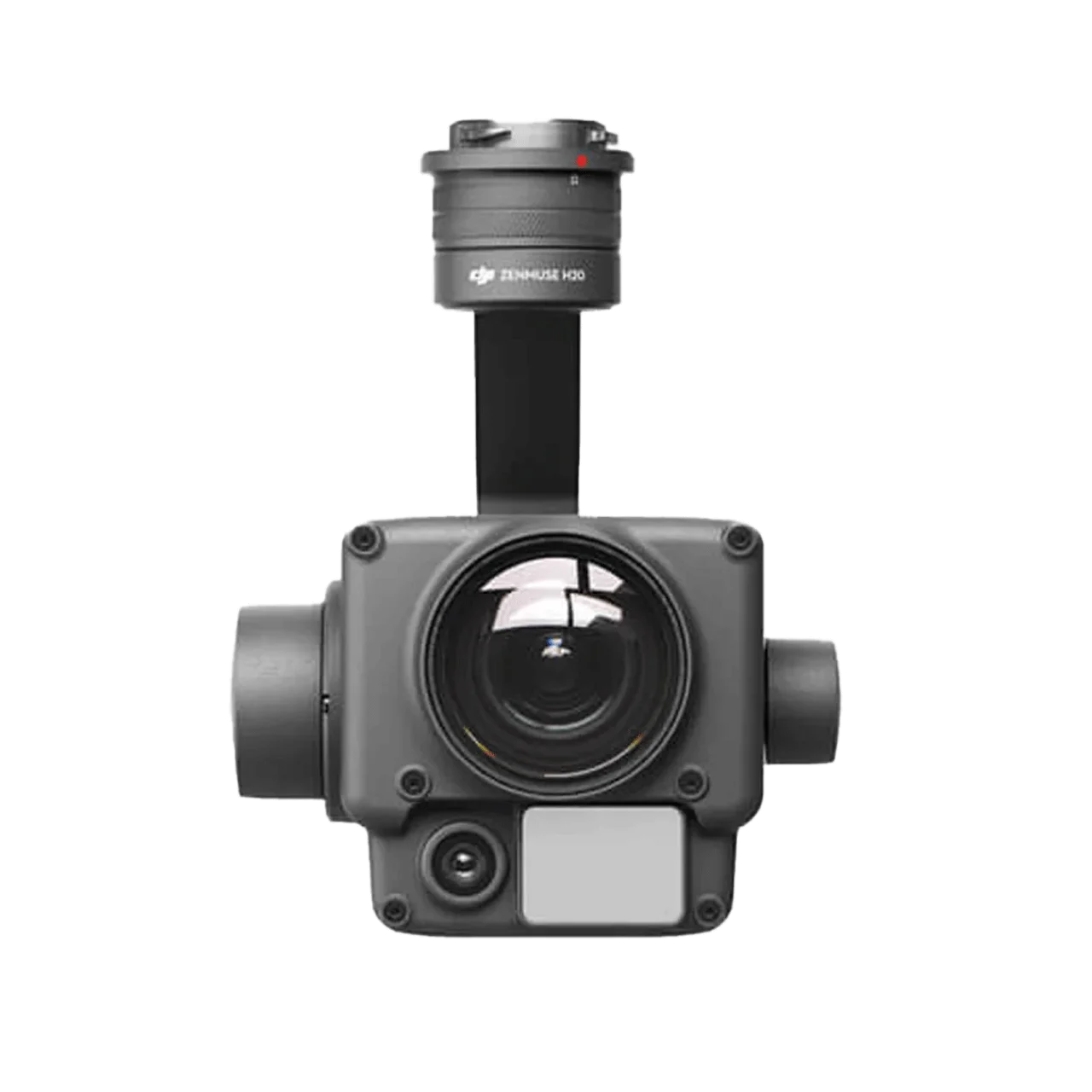

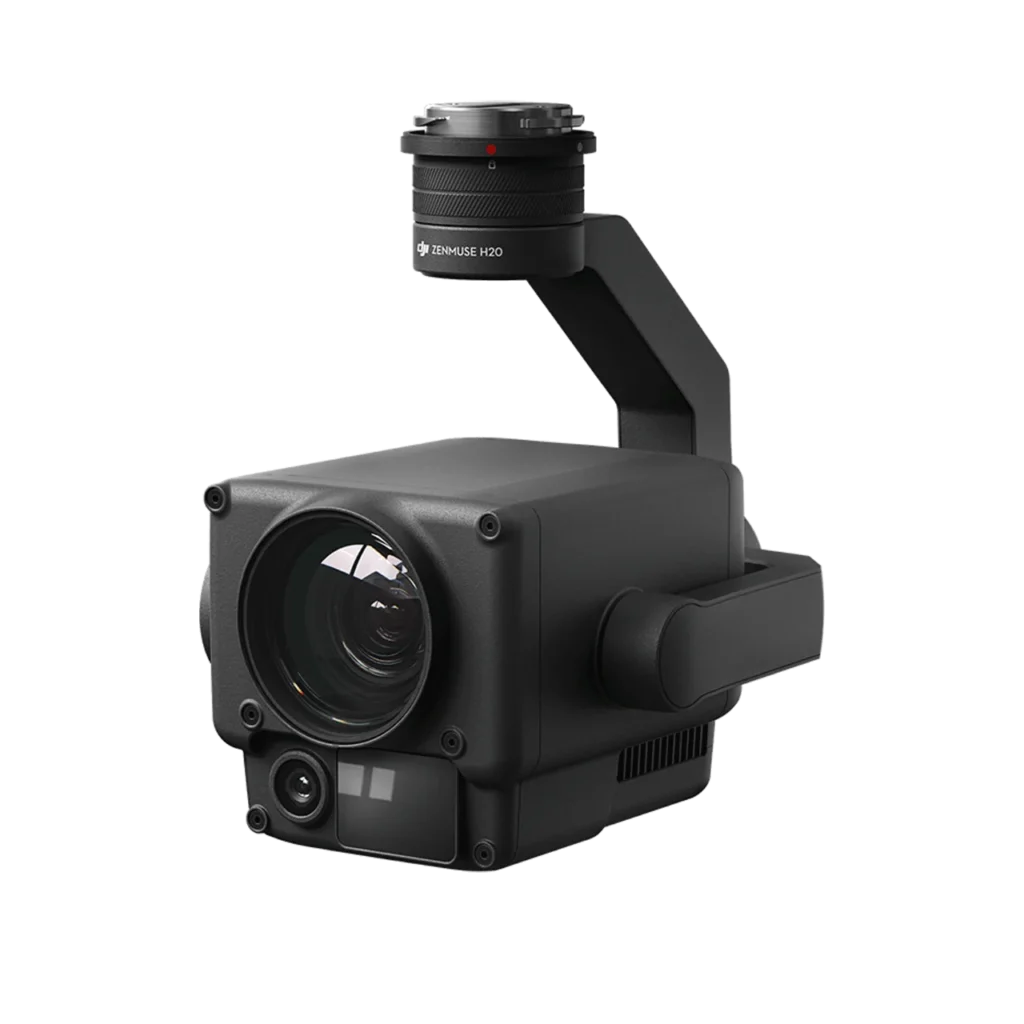

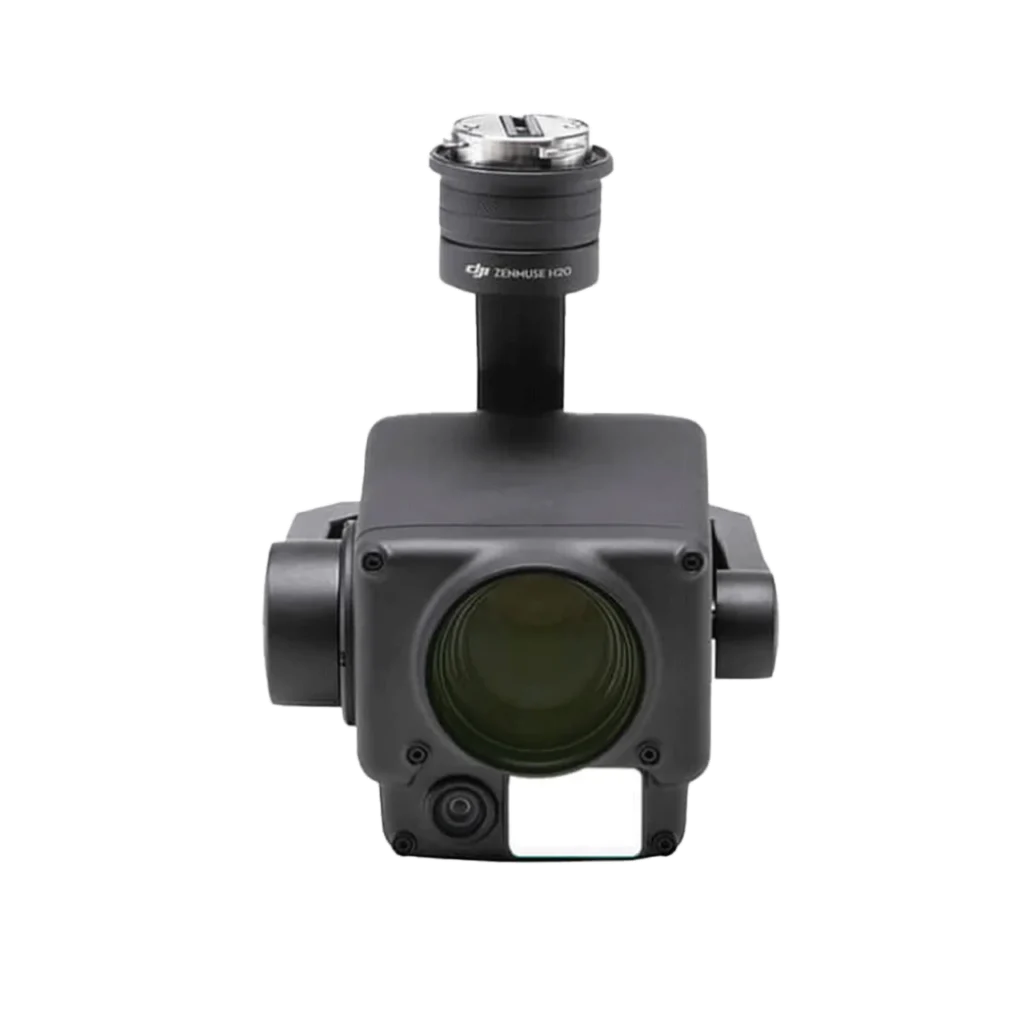

DJI Zenmuse H20 is a triple-sensor hybrid payload designed for DJI industrial drone platforms, integrating a 20MP Zoom camera, 12MP Wide camera, and 1200m Laser Rangefinder into a single compact unit. Part of DJI’s first hybrid sensor series, the Zenmuse H20 delivers unmatched aerial imaging intelligence and mission efficiency for commercial drone operations.
All The Sensors You Need – In One Payload
Triple-Sensor Configuration
- 20MP Zoom Camera – 23× Hybrid Optical Zoom, 200× Maximum Zoom for extreme-distance detail capture
- 12MP Wide Camera – 82.9° DFOV, 24mm equivalent focal length for broad situational coverage
- Laser Rangefinder (LRF) – 3m–1200m range, ±(0.2m + D×0.15%) accuracy for precise distance measurement
Powerful Imaging Performance
Zoom Camera – Close the Distance
- 23× Hybrid Optical Zoom, 200× Maximum Zoom – Capture critical detail at extreme operational distances
- 20MP 1/1.7″ CMOS Sensor – High-resolution imagery for detailed inspection and documentation
- 4K/30fps Video Resolution – Professional-grade video for real-time situational awareness and post-mission review
Wide Camera – Everything in View
- 12MP 1/2.3″ CMOS Sensor – High-resolution broad scene capture for overviews and navigation
- 82.9° DFOV, 24mm Equivalent Focal Length – Wide contextual coverage without distortion
Laser Rangefinder – Precise Distance Data
- 3m–1200m Measurement Range – Accurately measure distance to any object from a safe aerial standoff position
- ±(0.2m + D×0.15%) Accuracy – Reliable precision for inspection targeting and coordinate acquisition
AI-Powered Intelligent Features
AI Spot-Check
Automate routine inspections with consistent, repeatable results. Onboard AI recognizes pre-marked subjects of interest across subsequent automated missions, ensuring precise and consistent framing every time — reducing pilot workload significantly.
High-Res Grid Photo
Frame an area of interest in wide camera view, and the zoom camera automatically captures a complete set of 20MP images of that area. All images are stored alongside an overview image for comprehensive post-mission review.
PinPoint
Tap any object in view to instantly deliver its precise GPS coordinates via advanced sensor fusion algorithms — eliminating manual coordinate lookup during time-critical operations.
Smart Track
Automatically identify and follow moving subjects — people, vehicles, and boats — with real-time auto-zoom adjustment, while continuously acquiring the subject’s dynamic location data.
Seamless User Experience
- Integrated Control Interface – Quickly switch between wide and zoom camera views with zoom FOV preview available while in wide camera mode
- Active Image Stabilization & EIS – Smooth, stable imagery regardless of wind or flight maneuvers
- Night Scene Mode – Enhanced low-light performance for effective twilight and nighttime operations
Built for Demanding Field Conditions
- IP44 Protection Rating – Dust and moisture resistance for reliable all-weather deployment
- -20°C to 50°C Operating Temperature Range – Consistent performance from freezing cold to extreme heat

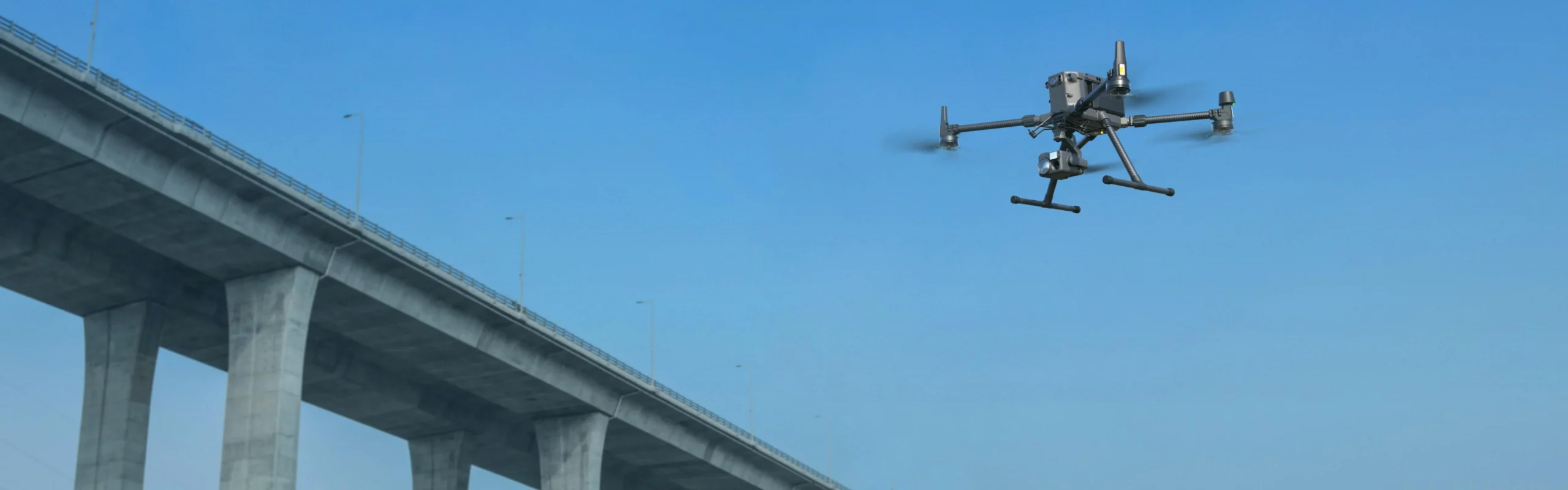

- Optimized for DJI Matrice 300 RTK – Seamless plug-and-play integration with DJI’s leading enterprise drone platform
Application Scenarios
- Firefighting – Multi-sensor awareness for fighting fires and saving lives without endangering ground personnel
- Search & Rescue – Smart Track and zoom capability to rapidly locate missing persons and coordinate rescue missions

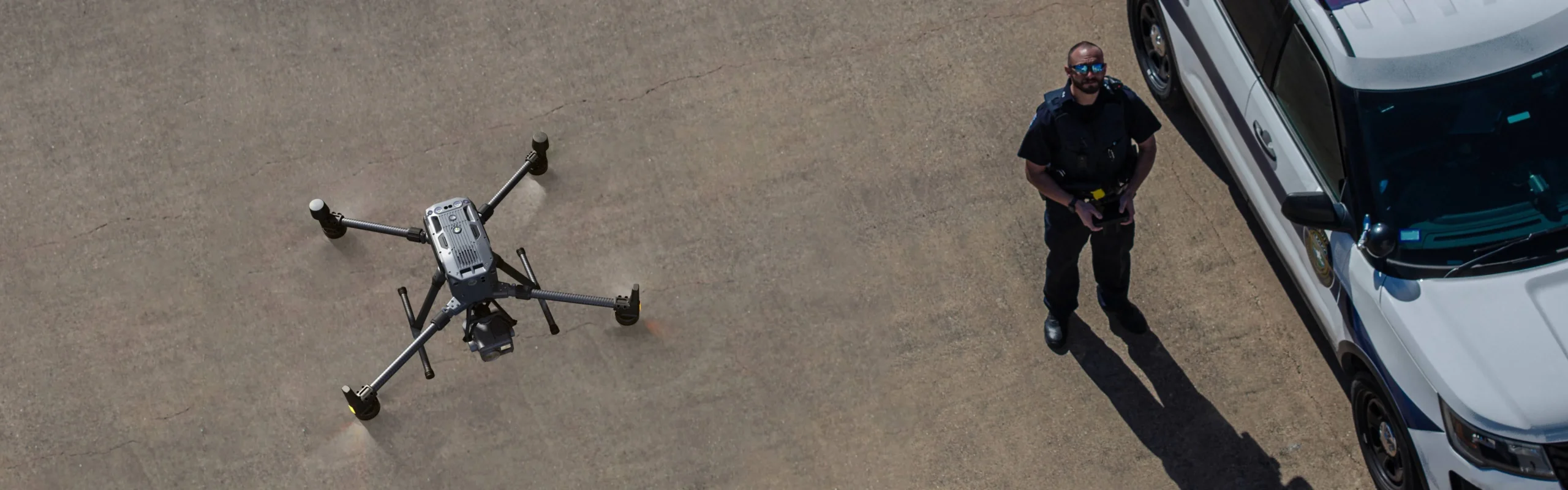

- Law Enforcement – High-zoom intelligence for rapid situation assessment while improving officer and bystander safety

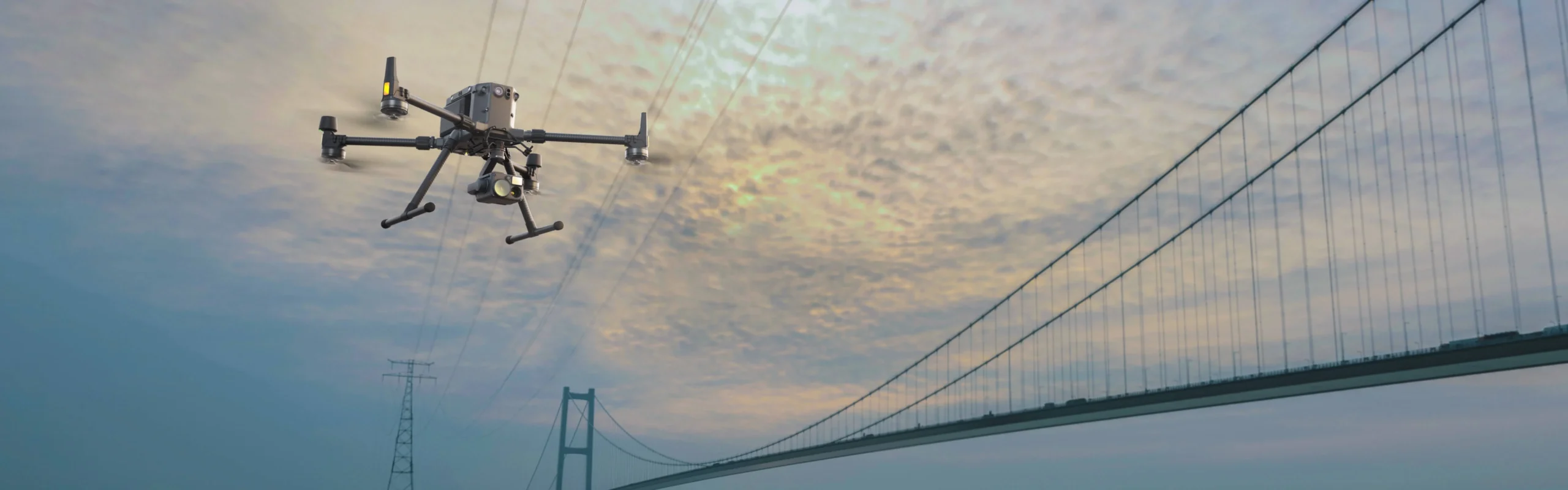

- Power Line Inspection – Zoom and LRF for precise inspection of extensive power line networks in remote and difficult terrain
- Oil & Gas – Aerial inspection of pipelines, well sites, and facilities while keeping workers away from hazardous environments
